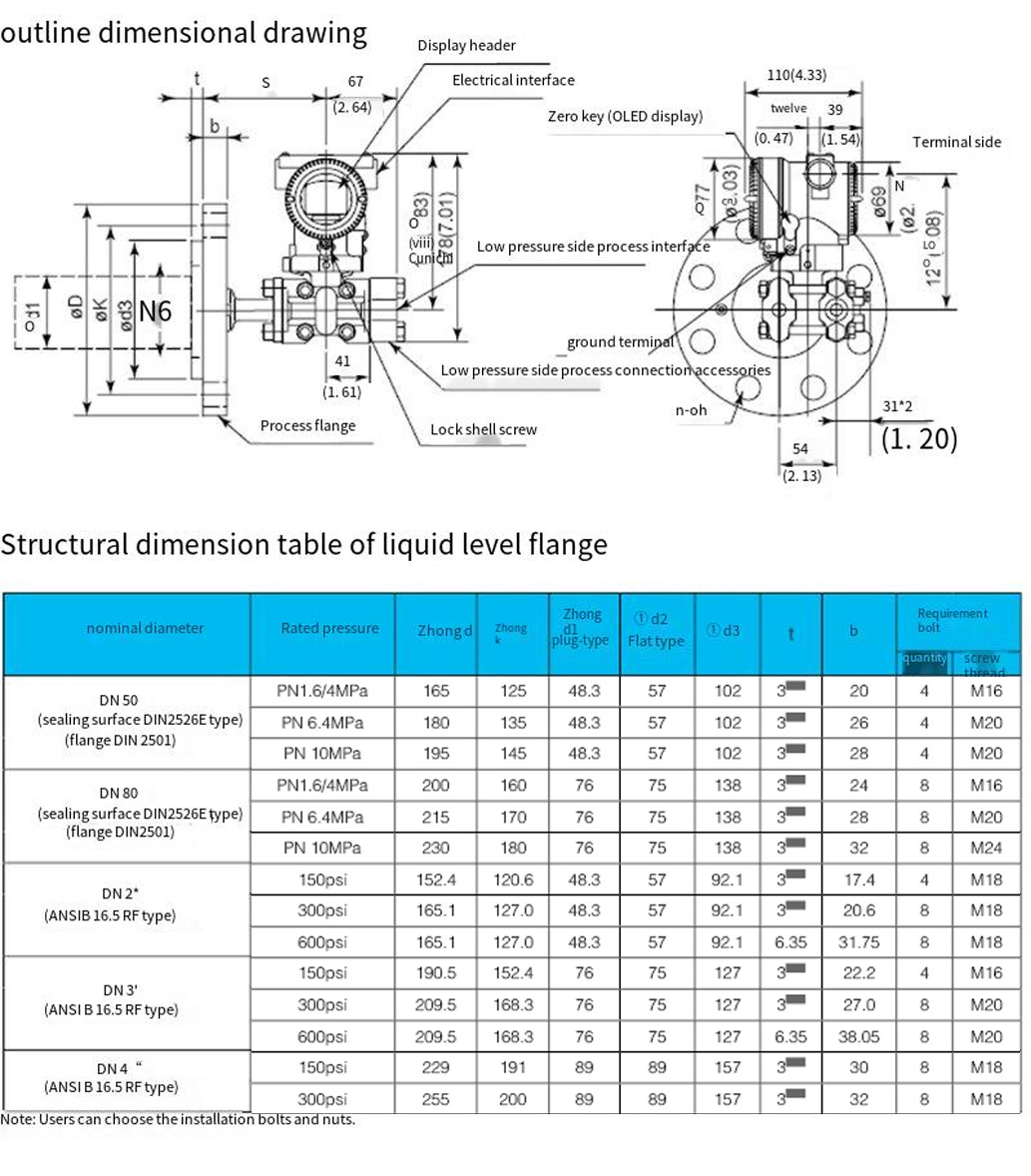

The 3051S LT Differential Pressure Level Transmitter is structurally composed of an FD3051S series differential pressure transmitter and a weld-mounted level flange. The pressure acting on the high-pressure side first passes through the diaphragm and filling fluid on the level flange, then through the transmitter body, and finally reaches the high-pressure side of the measuring sensor.

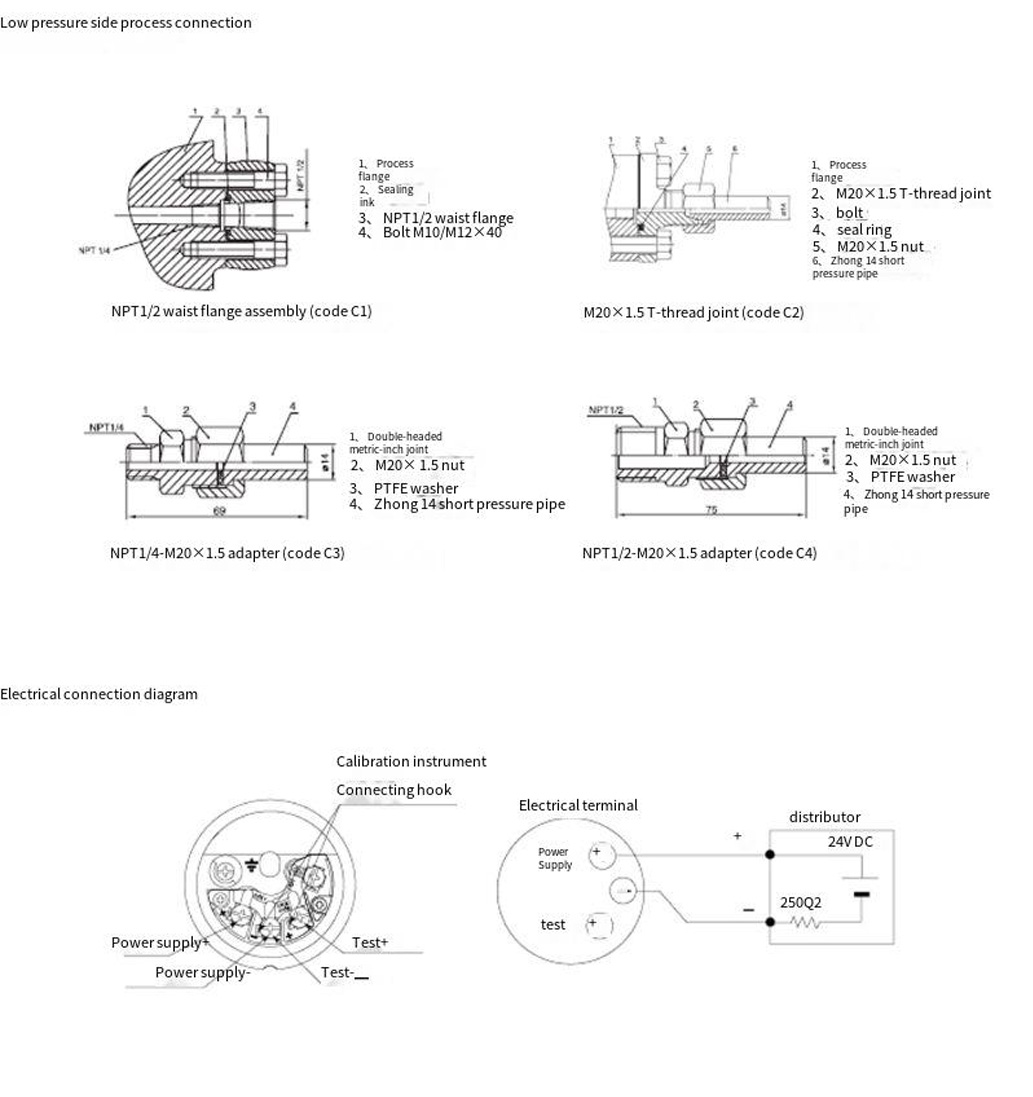

The FD3051S LT Level Transmitter is used to measure the level, density, pressure, and flow rate of liquids, gases, or vapors, and then converts these measurements into a 4~20mA DC HART current signal for output. The FD3051S LT can also communicate with the FDT375 handheld terminal and FDM100 Modem, through which parameter setting, process monitoring, and other operations can be performed.
Measured Medium: Suitable for measuring fluid media such as high-temperature, high-viscosity, corrosive, and easy-to-precipitate fluids.

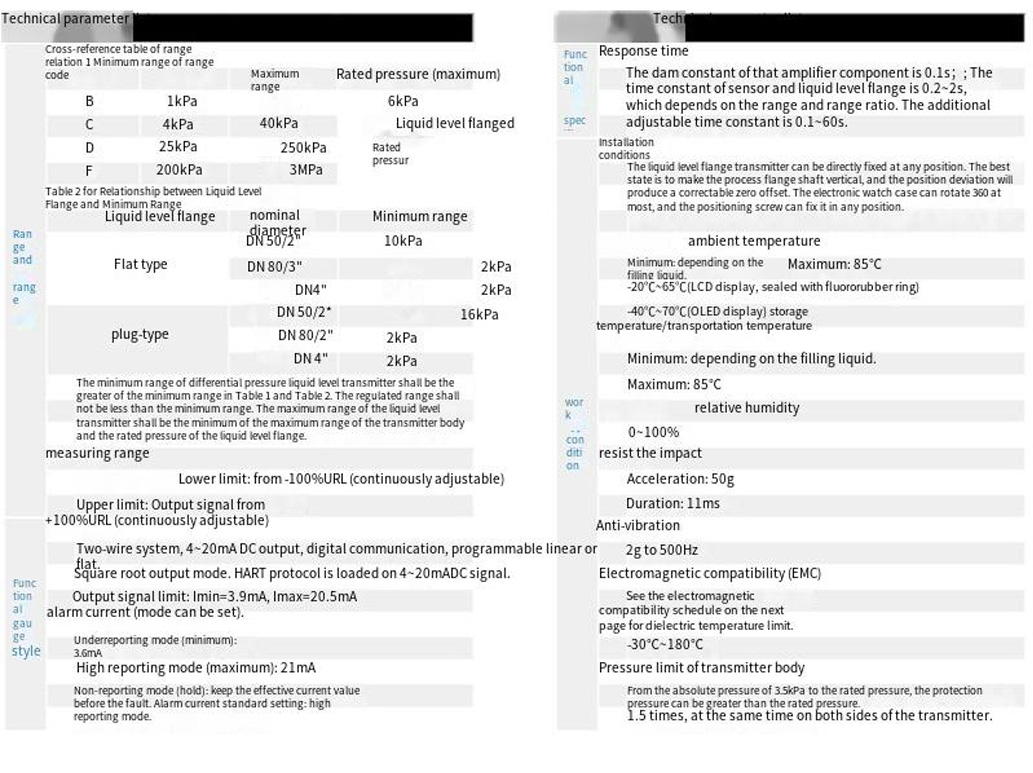

Measurement Range (without migration): 0—1kPa ~ 3MPa
Accuracy: ±0.075%, 0.1%
Wetted Diaphragm: 316L stainless steel, Hastelloy C
The 3051S LT Differential Pressure Level Transmitter is structurally composed of an FD3051S series differential pressure transmitter and a weld-mounted level flange. The pressure acting on the high-pressure side first passes through the diaphragm and filling fluid on the level flange, then through the transmitter body, and finally reaches the high-pressure side of the measuring sensor.
The FD3051S LT Level Transmitter is used to measure the level, density, pressure, and flow rate of liquids, gases, or vapors, and then converts these measurements into a 4~20mA DC HART current signal for output. The FD3051S LT can also communicate with the FDT375 handheld terminal and FDM100 Modem, through which parameter setting, process monitoring, and other operations can be performed.
Measured Medium: Suitable for measuring fluid media such as high-temperature, high-viscosity, corrosive, and easy-to-precipitate fluids.
Measurement Range (without migration): 0—1kPa ~ 3MPa
Accuracy: ±0.075%, 0.1%
Wetted Diaphragm: 316L stainless steel, Hastelloy C
