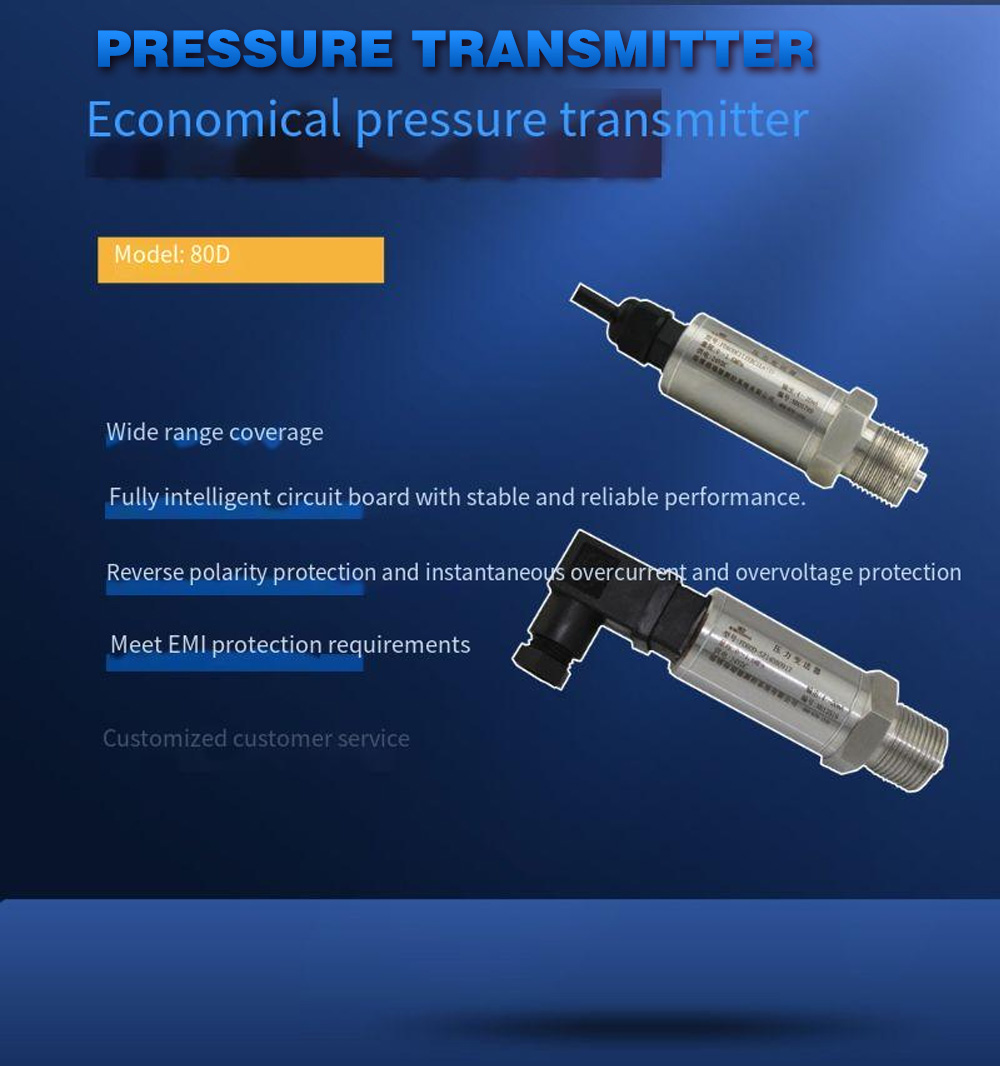

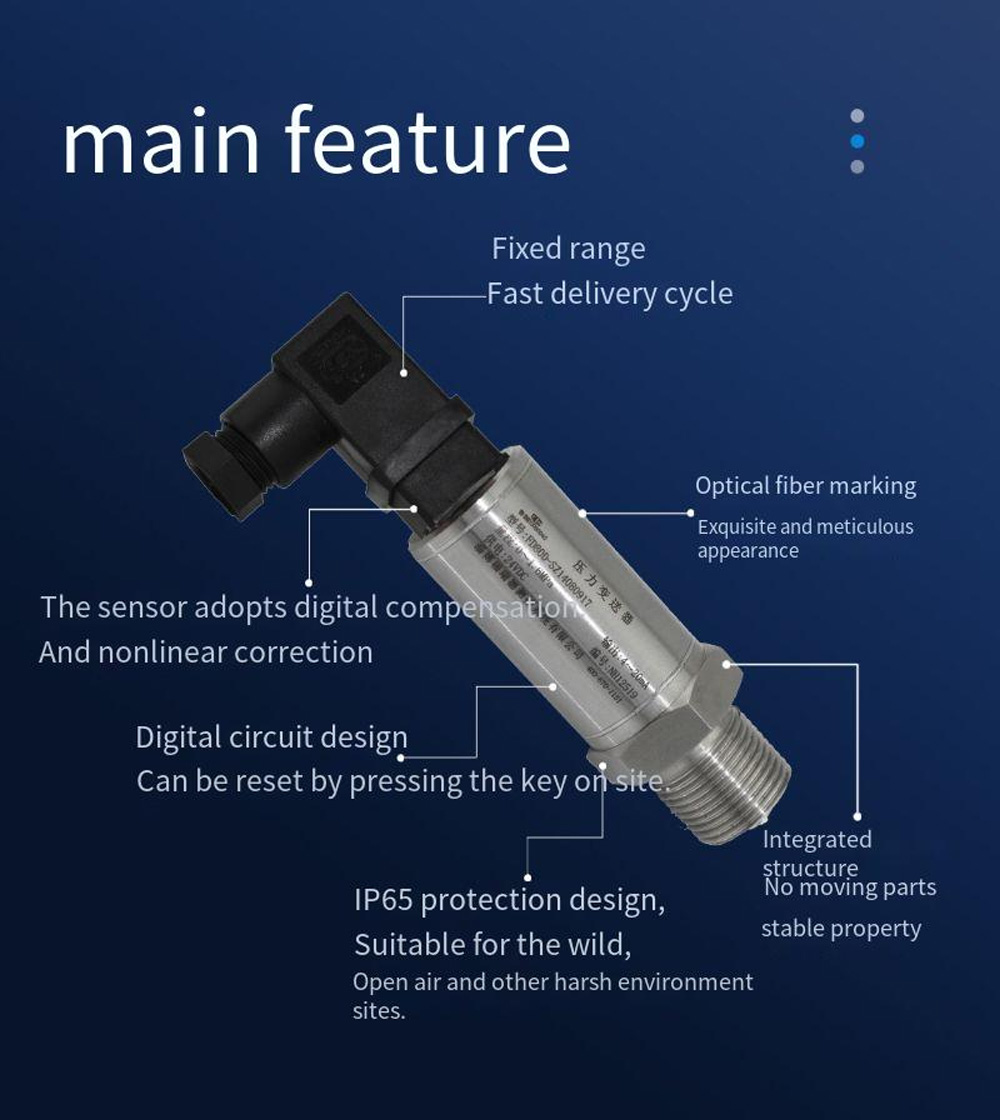

The series economical pressure transmitter is a highly stable pressure measurement product. The digital technology used in this product is the latest application achievement in the field of sensor manufacturing, combined with internationally advanced design and manufacturing technology for resistive pressure transmitters, for precise digital temperature compensation and nonlinear correction, integrated structural design, and standardized output signals. Suitable for measuring fluid pressure in various industries.
Range: 0-0.6MPa to 4MPa
Pressure type: gauge pressure
Overload capacity: allows overload up to 5 times the sensor range
Destroy pressure twice the sensor range
Comprehensive accuracy: 5% F.S
Long term stability: 5% F.S/year
Working temperature: 0 ℃~50 ℃
Power supply: 18V~30VDC (recommended 24VDC power supply)
Output signal: 4mA~20mADC
Protection level: IP65
Warranty period: twelve months
