Product Overview

The 3051S FG/FA sanitary gauge pressure/absolute pressure transmitter is used to measure the liquid level, density, and pressure of liquids, gases, or vapors, and then convert it into a 4-20mADC HART current signal output. The 3051S FG/FA can also communicate with T375 handheld terminals or M100 modems for parameter setting, process monitoring, etc.

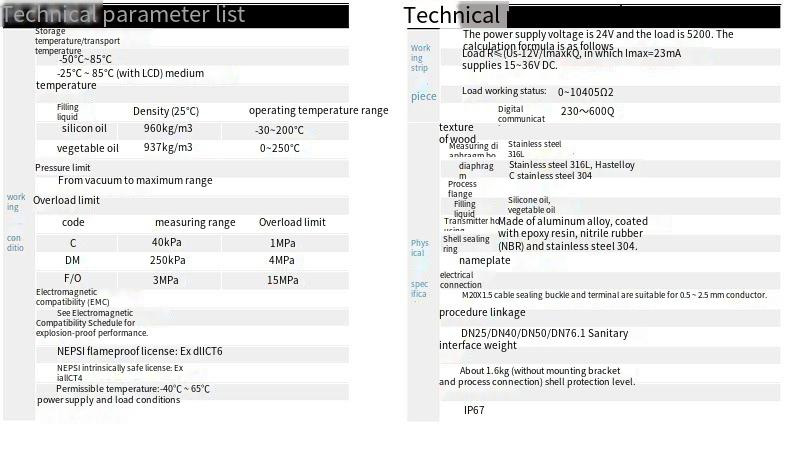

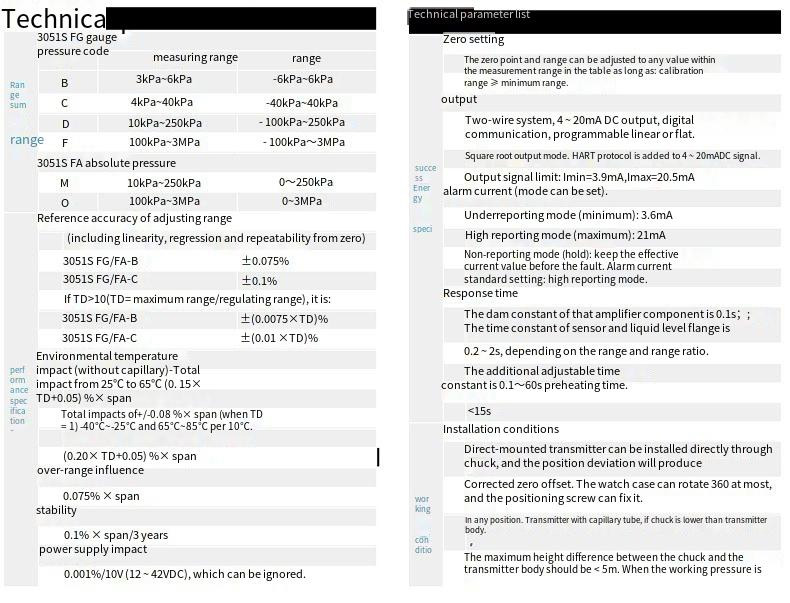

Standard Specifications

Calibrate the range based on the standard zero point, use stainless steel 316L diaphragm, and fill with silicone oil.

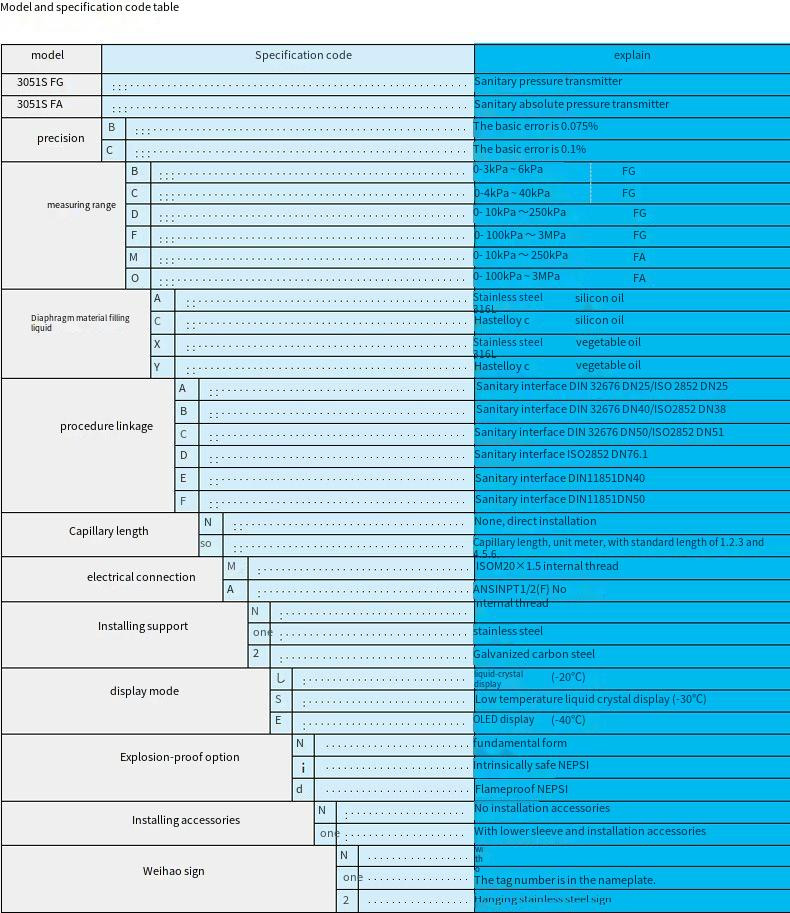

Example of selection:

Example: 3051S FG-BCAANMNLNN1C

[3051S FG]: Sanitary Pressure Transmitter

[B]: Basic error of ±0.075%

[C]: Measuring range: 0-4kPa ~ 40kPa

[A]: Wetted parts: 316L stainless steel diaphragm, filled with silicone oil

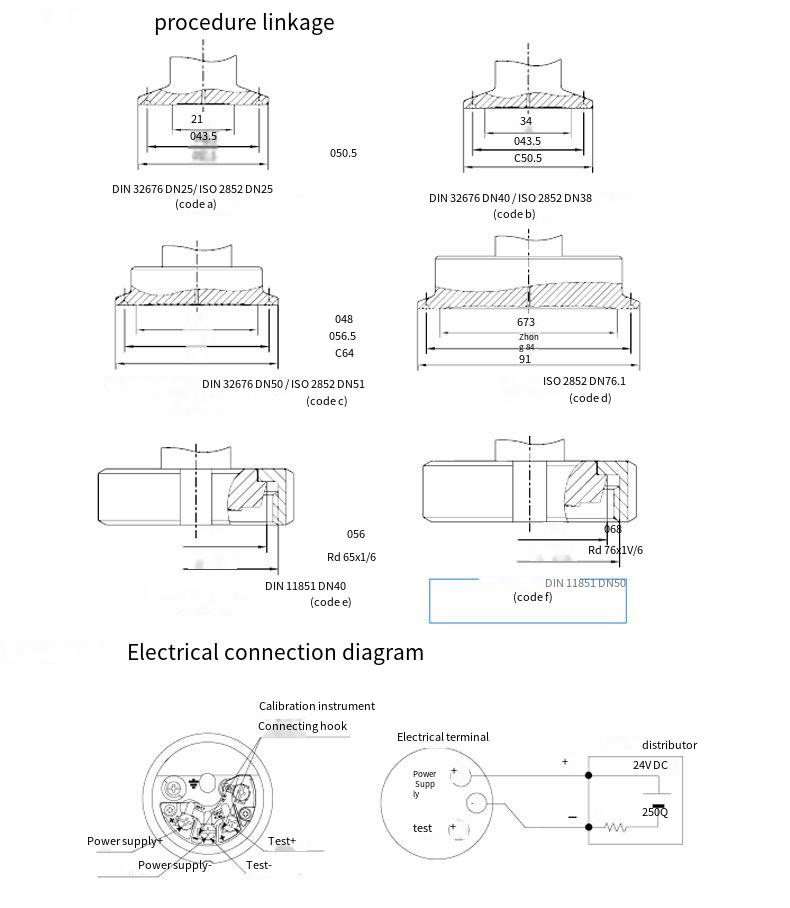

[A]: Sanitary interface: DIN 32676 DN25 / ISO 2852 DN 25

[N]: No capillary tube, direct mounting

[M]: Electrical interface: ISO M20 × 1.5 female thread

[N]: No mounting bracket

[L]: LCD display (-20℃)

[N]: Basic type (non-explosion-proof)

[N]: No mounting accessories

[1]: Tag number marked on the nameplate

[C]: User manual in Chinese

Note: If a certain code refers to a non-standard item with special requirements, it can be replaced by the code "X" or "Y", and the corresponding description of X or Y shall be provided.
