Product Overview

The 3051S DR micro differential pressure transmitter is used to measure the liquid level, density, and pressure of liquids, gases, or vapors, and then convert it into a 4-20mADC HART current signal output. It can also communicate with the FD375 handheld terminal or remote control for parameter setting, process monitoring, etc.

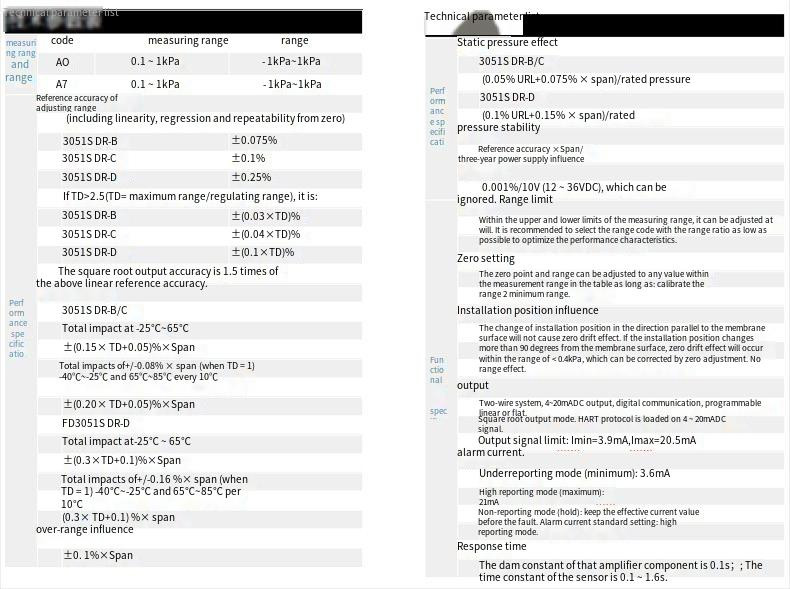

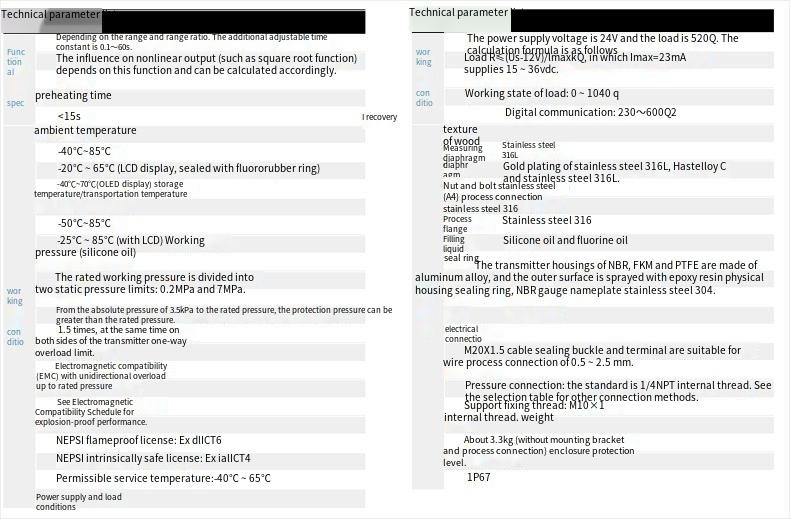

Standard Specifications

Calibrate the range based on the standard zero point, use stainless steel 316L diaphragm, and fill with silicone oil.

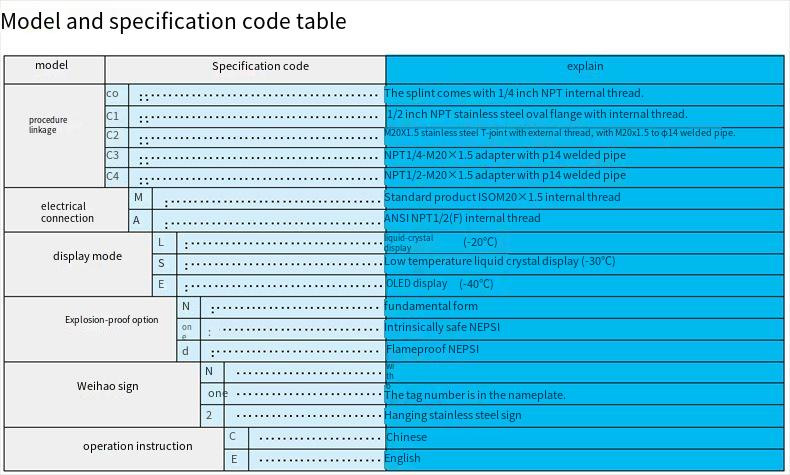

Example of selection:

Example: 3051S DR-CA00ABNN1C1MLN1C

[C]: Basic error of ±0.1%

[A0]: Measuring range: 0-100Pa ~ 1kPa; Rated operating pressure: 0.2MPa

[0]: No static pressure sensor

[A]: Wetted parts: 316L stainless steel diaphragm, filled with silicone oil

[B]: Relief valve mounted on the rear end face of the flange

[N]: Wetted sealing ring: Nitrile Butadiene Rubber (NBR)

[N]: No special functions

[1]: Stainless steel mounting bracket

[C1]: Equipped with 1/2 inch NPT female thread stainless steel oval flange

[M]: Electrical interface: M20*1.5 female thread

[L]: LCD display

[N]: Basic type (non-explosion-proof transmitter)

[1]: Tag number marked on the nameplate

[C]: User manual in Chinese

Note: If a certain code refers to a non-standard item with special requirements, it can be replaced by the code "X" or "Y", and the corresponding description of X or Y shall be provided.
