WeiHai DuoTeRui Automation Equipment Co., Ltd. was established on July 15, 2016. It mainly engages in the R&D, production and sales of flow meters, and is a technology-based enterprise integrating science, ind...
Product Category
Features:
1. The unique design of the cone allows for long-term use without the need for recalibration, ensuring good stability
2. Low pressure loss, about 1/5~1/10 of the orifice plate, saving energy
3. The range is 1:10 higher than the conventional range, and the parameter accuracy can reach 1:20
4. It can measure media under high temperature, high pressure, and complex working conditions. The special throttling fluid allows it to measure multiphase water flow, electromagnetic interference media, various mixed gases, etc. It is very suitable for measuring media such as steam, coal gas, etc
5. It has self-cleaning ability, and the cone has no stagnant area to prevent blockage
Features:
1. The unique design of the cone allows for long-term use without the need for recalibration, ensuring good stability
2. Low pressure loss, about 1/5~1/10 of the orifice plate, saving energy
3. The range is 1:10 higher than the conventional range, and the parameter accuracy can reach 1:20
4. It can measure media under high temperature, high pressure, and complex working conditions. The special throttling fluid allows it to measure multiphase water flow, electromagnetic interference media, various mixed gases, etc. It is very suitable for measuring media such as steam, coal gas, etc
5. It has self-cleaning ability, and the cone has no stagnant area to prevent blockage
Parameter
| Specifications | DN15-DN2000 |
| Connection Method |
Flange connection type |
| Voltage resistance level | 10MPa |
| Pressure Tapping Method |
Pressure measurement with nozzle and double flange |
| Material |
20G, 304, 316L, etc |

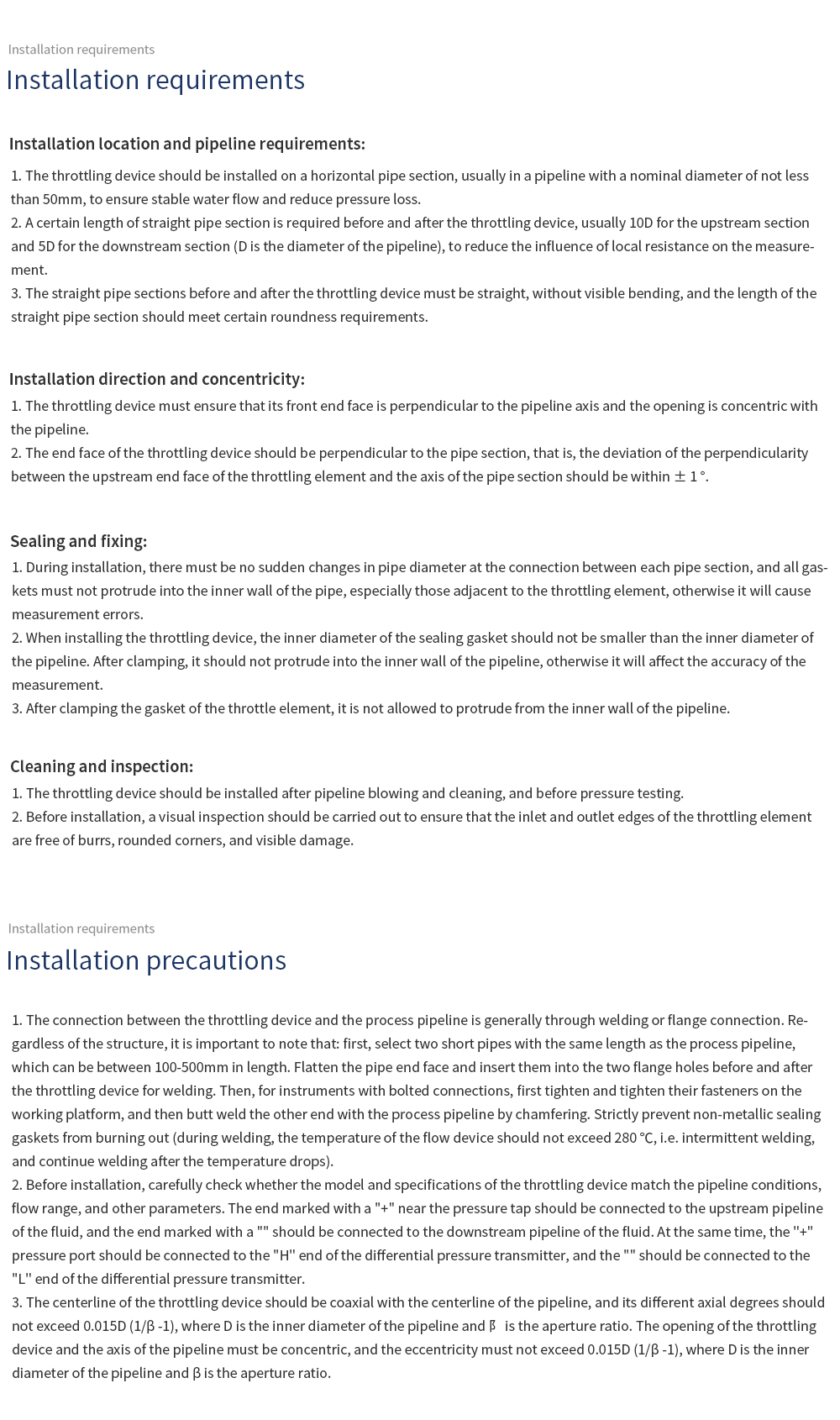

| Requirements for straight pipe sections |
At least 5D before and 2D after |
