WeiHai DuoTeRui Automation Equipment Co., Ltd. was established on July 15, 2016. It mainly engages in the R&D, production and sales of flow meters, and is a technology-based enterprise integrating science, ind...
Product Category
Features:
Simple structure, low manufacturing cost, and easy installation
Mature technology, rich application experience, and wide range of applications
Turndown ratio: 1:3
Large pressure loss; long-term measurement accuracy is difficult to guarantee, requiring annual disassembly for mandatory inspection
Suitable for flow measurement of various single-phase fluids, including gases, steam, and liquids
Its measurement repeatability and accuracy are at a medium level among flow sensors
Features:
Simple structure, low manufacturing cost, and easy installation
Mature technology, rich application experience, and wide range of applications
Turndown ratio: 1:3
Large pressure loss; long-term measurement accuracy is difficult to guarantee, requiring annual disassembly for mandatory inspection
Suitable for flow measurement of various single-phase fluids, including gases, steam, and liquids
Its measurement repeatability and accuracy are at a medium level among flow sensors
Parameters：

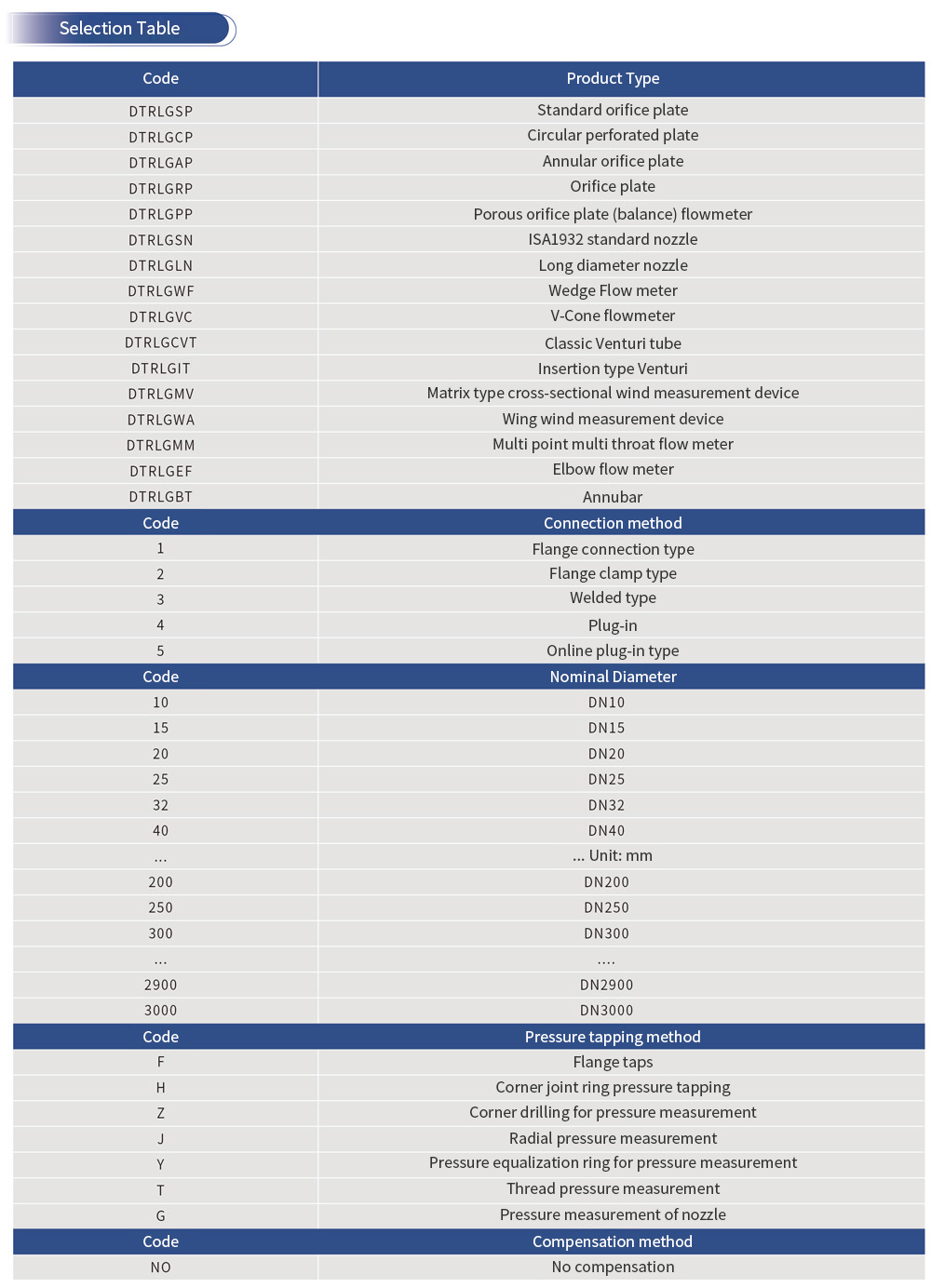

| Common types | Standard orifice plate, annular orifice plate, circular orifice plate, eccentric orifice plate, high-pressure lens orifice plate, etc |
| Specifications |
DN10-DN3000 |
| Connection Method | Flange clamp type, flange connection type, welding type, etc |
| Voltage resistance level |
42MPa |
| Fluid Temperature |
Maximum 650 ℃ |
| Pressure Tapping Method |
Corner joint ring pressure measurement, corner joint drilling pressure measurement, flange pressure measurement, radial distance pressure measurement |
| Material |
20G、304、316L、15CrMo、12Cr1Mov、 Titanium, Hastelloy, etc |

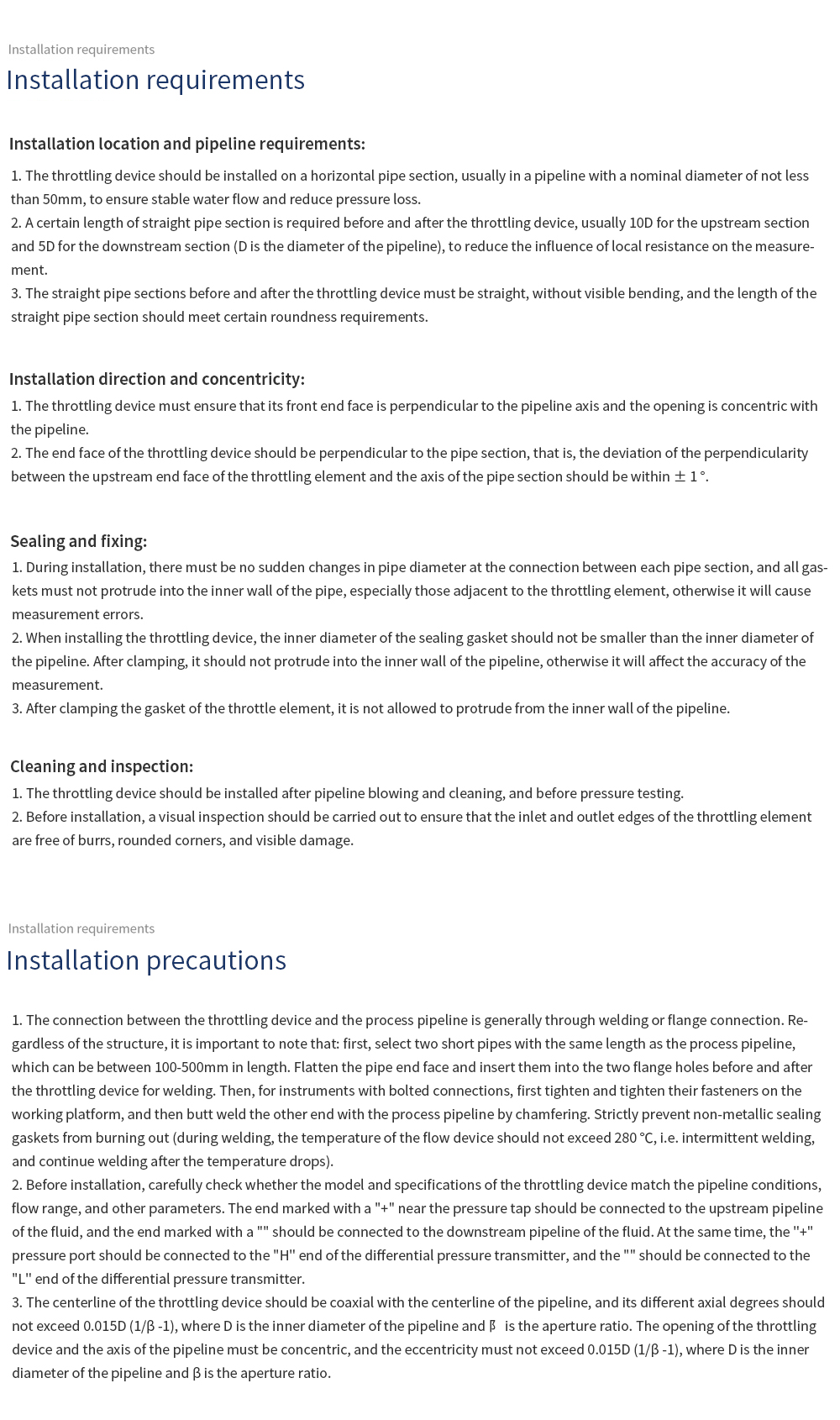

| Requirements for straight pipe sections |
At least 10D in the front and 5D in the back |
